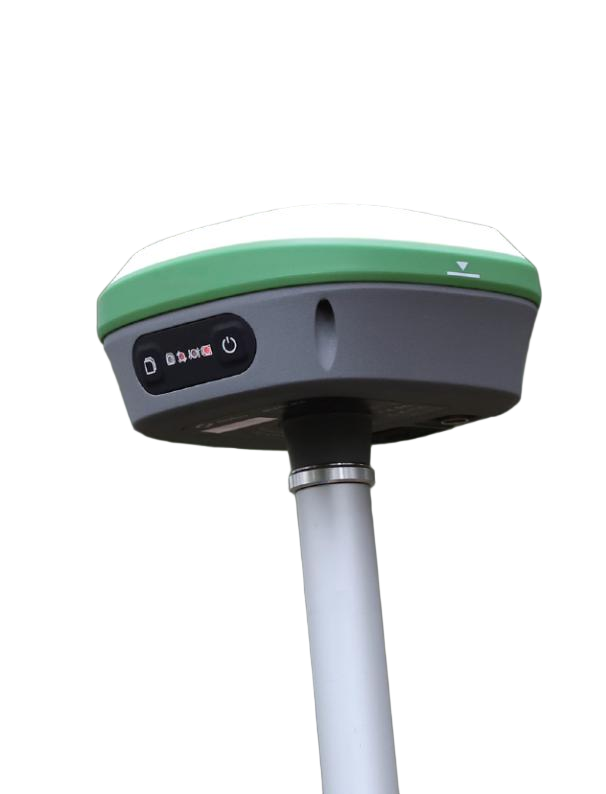

AllyNav R26 High-Precision GNSS Static Positioning Device

AllyNav R26 High-Precision GNSS Static Positioning Device

AllyNav R26 is a portable (1.03kg) 432-channel GNSS device supporting GPS/BDS/GLONASS/Galileo/QZSS, with static (2.5mm+0.5ppm RMS) and RTK (1cm+1ppm RMS) accuracy, 6500mAh battery (11.5h runtime), 8GB storage, and easy operation for static data collection/export.

Contact us for the best deal on this product.

Specifications

  • GNSS: 432 channels, supports GPS/BDS/GLONASS/Galileo/QZSS
  • Positioning Accuracy: Static (±(2.5+0.5×10⁻⁶D)mm H/±(5+0.5×10⁻⁶D)mm V); RTK (1cm+1ppm H/1.5cm+1ppm V)
  • Hardware: 140mm×141mm×88mm, 1.03kg, 5/8-inch fixed thread
  • Power/Storage: 7.2V 6500mAh built-in battery (11.5hrs runtime), 8GB internal storage
  • Communication: Bluetooth 4.0, UHF radio (450-470MHz, 1W max), RS232 port, USB
  • Environment: Operating temp -20℃; Storage temp -25℃

Features

  • High-precision static data processing with simple operation
  • Compact and portable design, easy to carry for fieldwork
  • One-key control for static recording mode (4-second press to turn on/off)
  • Multi-indicator lights for real-time status monitoring (satellite, differential, power)
  • Compatible with multiple radio protocols (TRIMTALK, TRIMMK3, etc.)
  • Plug-and-play USB data export for efficient post-processing

Download Brochure Download Manual View full details
