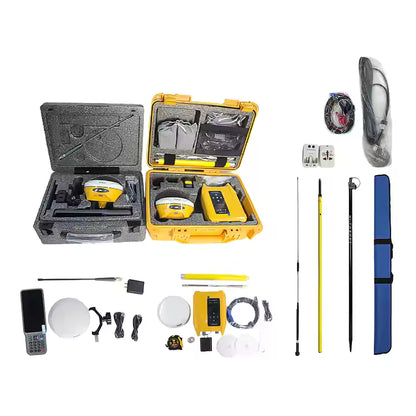

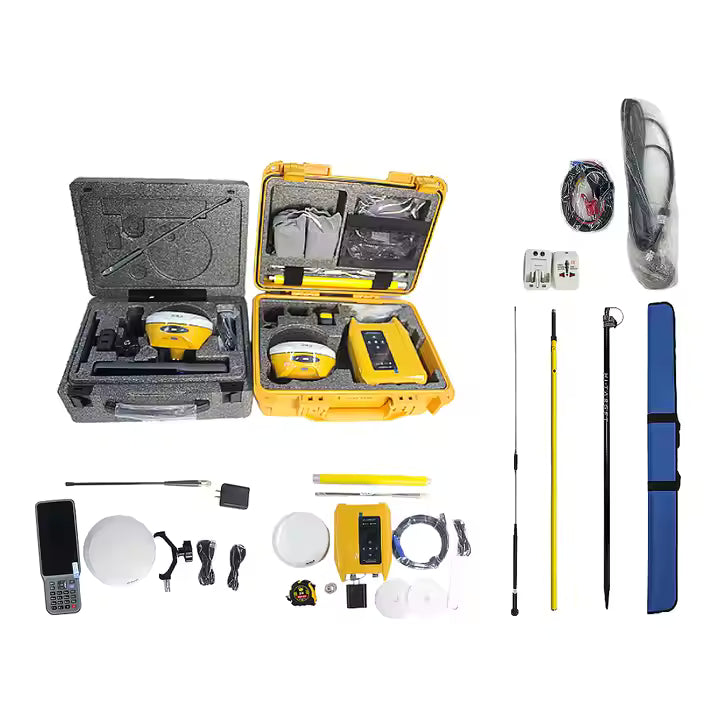

Hi-Target V500 Compact GNSS RTK Receiver

Hi-Target V500 is a lightweight (≤0.75kg) 1408/1760-channel RTK with IP68 protection, 24-hour battery life, AR stakeout (1cm accuracy), tilt survey, and multi-mode communication, ideal for efficient, accurate fieldwork.

Specifications

GNSS: 1408/1760 channels, supports GPS/BDS-3/GLONASS/Galileo/QZSS/PPP/SBAS
Positioning Accuracy: RTK (8mm+1ppm H/15mm+1ppm V); static (2.5mm+0.5ppm H); AR stakeout (1cm)
Tilt Survey: 8mm+0.7mm/° tilt (0°~60°), auto-initialization at startup
Hardware: 130mm×68mm, ≤0.75kg, IP68, 2m drop resistance, professional starlight night vision camera
Power/Storage: 7.4V 6800mAh battery (24hrs RTK rover), 16GB ROM, Type-C fast charging
Communication: Bluetooth 5.2, Wi-Fi (2.4GHz), UHF (410~470MHz, 0.5~2W), USB-C, SMA antenna port
Environment: Operating -40℃~+75℃; Storage -55℃~+85℃, MIL-STD-810G shock/vibration resistance

Features

Full-constellation/full-frequency tracking with multi-frequency anti-jamming technology for stable high precision
24-hour ultra-long battery life + universal charging support for all-day field work
360° AR stakeout with starlight camera, ensuring 1cm accuracy even in low-light conditions
Compact lightweight design (≤0.75kg) for easy portability and operation
Upgraded IMU enables tilt survey without pre-fixed solution, boosting work efficiency
Compatible with Hi-Survey software and iHand55 controller, supporting DXF/DWG formats
Hi-Fix technology maintains accuracy 5min without differential data, reducing downtime
