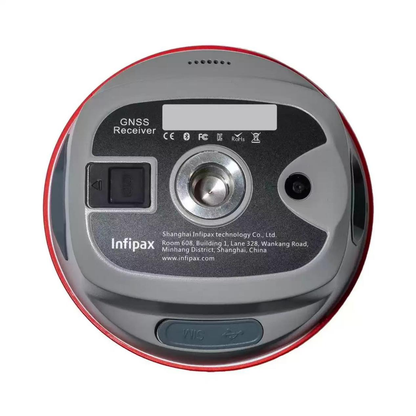

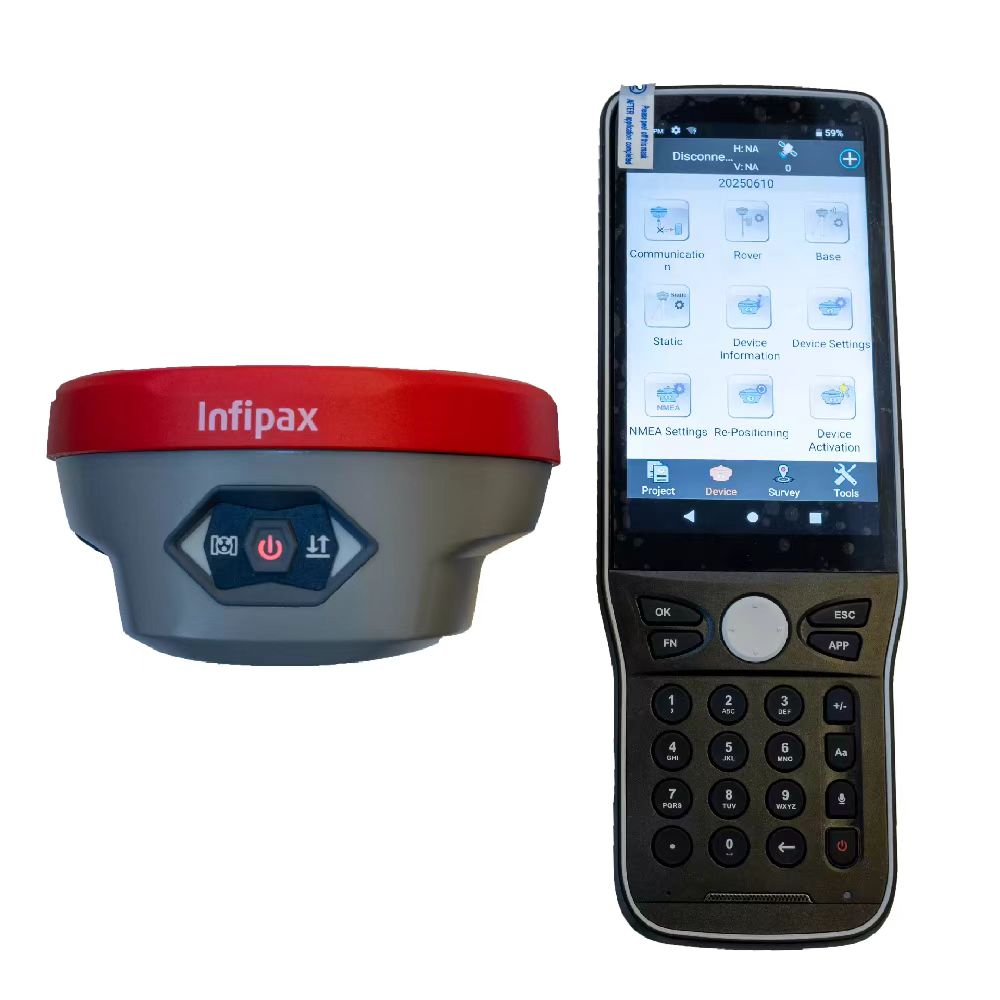

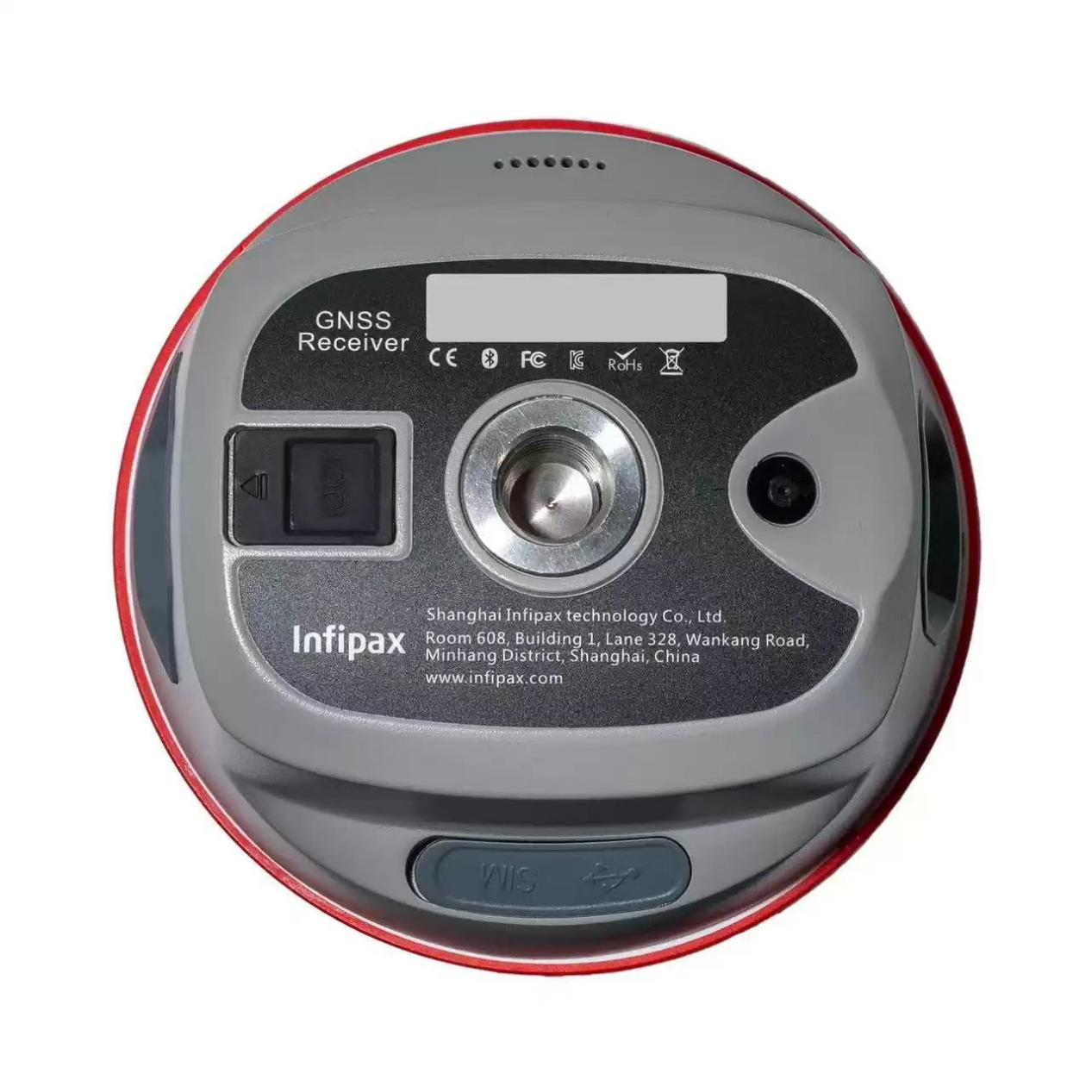

Infipax L30 Series Professional GNSS RTK Receivers

Infipax L30 series (L30/L30 Pro/L30 Ultra) are 1408-channel full-constellation RTKs with tilt compensation (up to 120°), multi-mode communication, AR stakeout (Pro/Ultra with night vision), and laser measurement (Ultra), boosting survey efficiency.

Specifications

GNSS: 1408 channels, supports BDS/GPS/GLONASS/Galileo/QZSS
Tilt Compensation: 200Hz update rate, max 120° tilt angle
Communication: Built-in 2W transceiver radio (Lora/TRIMTALK etc.), 4G, Bluetooth, WiFi, NFC; supports NTRIP
Versions Difference: L30 (basic tilt/AR); L30 Pro (dual cameras + night vision + visual survey); L30 Ultra (laser measurement + dual cameras + night vision)
Core Performance: Multi-protocol compatibility, global 4G connectivity

Features

Full-constellation tracking ensures stable positioning in complex environments
Tilt compensation boosts work efficiency by 30% in tricky scenarios (dangerous roads, weak signals)
AR stakeout with dual cameras (Pro/Ultra) supports night vision, 30% more efficient than traditional stakeout
L30 Ultra’s laser measurement enables non-contact coordinate collection for inaccessible targets
Flexible working modes (base station/rover) via integrated communication modules
Rugged design adapted for field surveying needs
