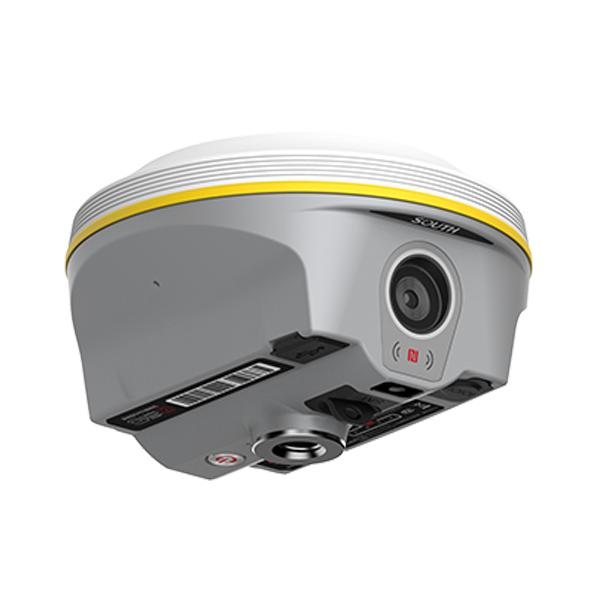

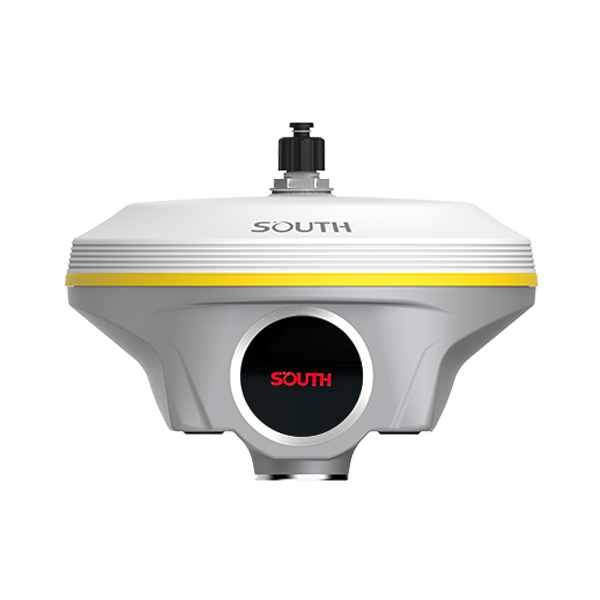

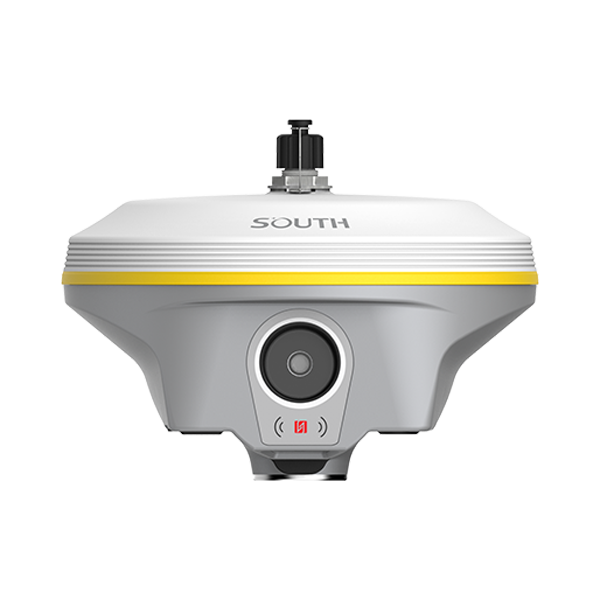

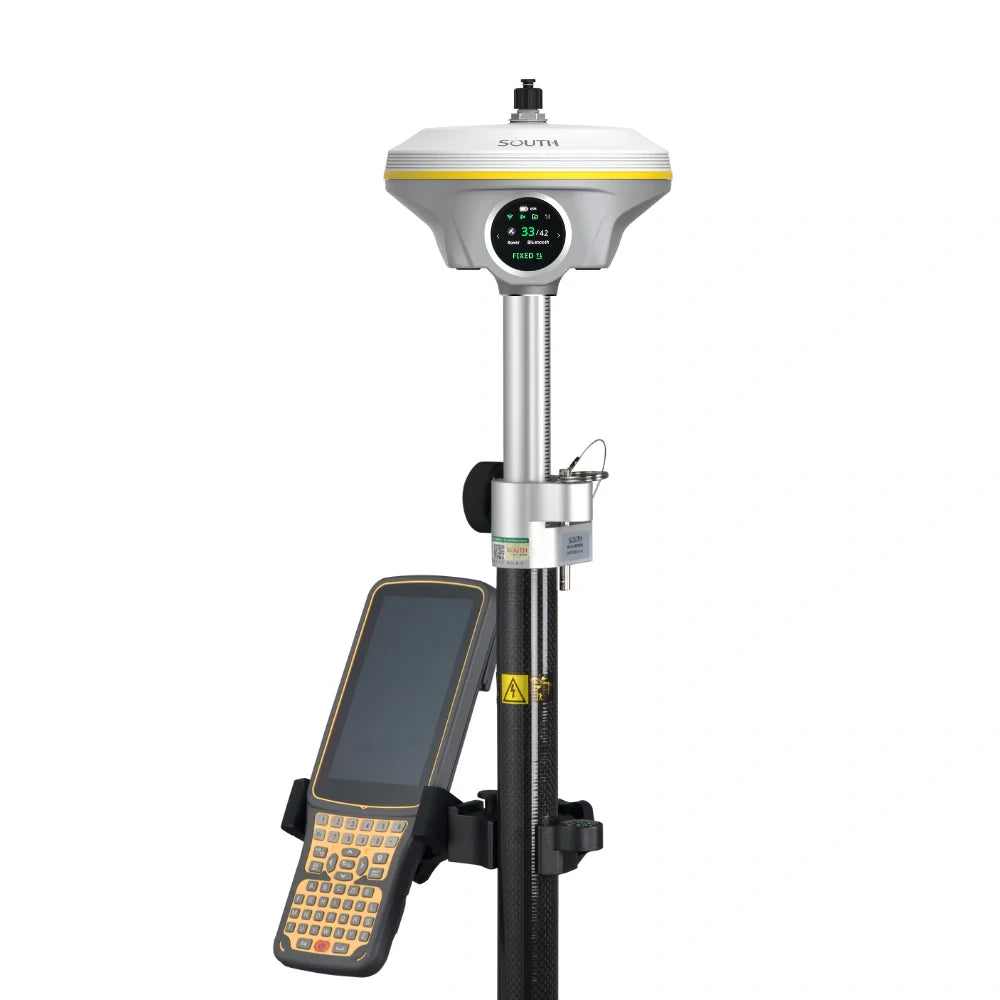

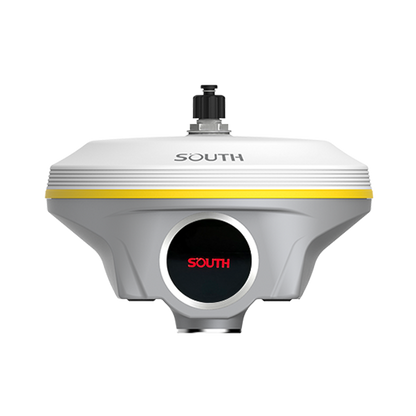

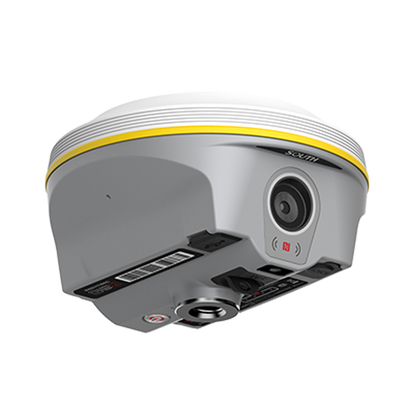

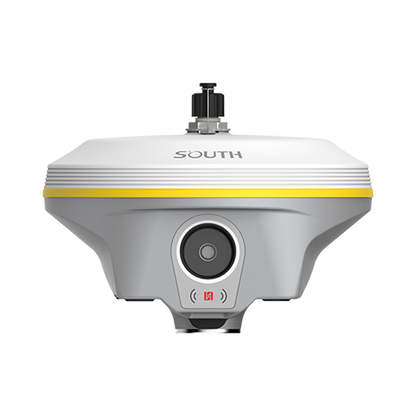

South Inno8 GNSS Rover Set

South Inno8 GNSS Rover Set

The South INNO8 GNSS Rover Set is an advanced RTK system equipped with UAV photogrammetry, AR-assisted stakeout, and has 1760-channel GNSS tracking. It is designed for high-precision fieldwork mainly with the help of the included Farlink 2.0 UHF, 4G LTE, and a 4th-gen IMU tilt sensor which allow it to provide maximum accuracy and efficiency.

Contact us for the best deal on this product.

Specifications

GNSS Channels: 1760

Supported Systems: GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, NavIC

Positioning Accuracy:

  • RTK: 8 mm + 1 ppm (horizontal), 15 mm + 1 ppm (vertical)
  • Static: 2.5 mm + 0.1 ppm (horizontal), 3 mm + 0.4 ppm (vertical)
  • PPK: 3 mm + 1 ppm (horizontal), 5 mm + 1 ppm (vertical)
  • IMU Tilt Correction: < 10 mm + 0.7 mm/° tilt, up to 60°

Initialization Time: 2-8 seconds

IMU Technology: 4th-generation, calibration-free, immune to magnetic interference

Battery: 10,000mAh Li-ion, up to 20 hours (rover mode)

Dimensions: 155mm × 98.5mm

Weight: 1.2 kg

Material: Magnesium aluminum alloy shell

Environmental Protection: IP68-rated, MIL-STD-810G drop resistance

Communication & Connectivity:

  • Farlink 2.0 UHF radio (up to 20km range)
  • 4G LTE, WiFi Hotspot, Bluetooth 4.0
  • NFC for fast pairing

Data Storage:

  • 64GB SSD internal storage, expandable
  • USB plug-and-play data transfer
  • Supports RTCM, Rinex, and NMEA formats

Special Features:

  • Dual-camera system for AR stakeout and UAV photogrammetry
  • 3D modeling via video-based terrain scanning
  • Advanced PPP technology for offline positioning

Features

1760-channel GNSS engine with full constellation tracking

UAV photogrammetry for remote terrain mapping

AR-assisted stakeout for intuitive surveying

4th-generation IMU tilt compensation (up to 60° tilt)

Farlink 2.0 UHF radio with up to 20km range

64GB internal storage with USB and cloud access

IP68 waterproof & MIL-STD-810G shockproof durability

10,000mAh battery with up to 20-hour operation

WiFi, Bluetooth 4.0, and NFC connectivity

Smart web-based interface for easy configuration
